Application Field:

Motor Grader PY220 main with:

CUMMNINS 6BTA5.9 engine, ZF Transmission, HUSCO valve

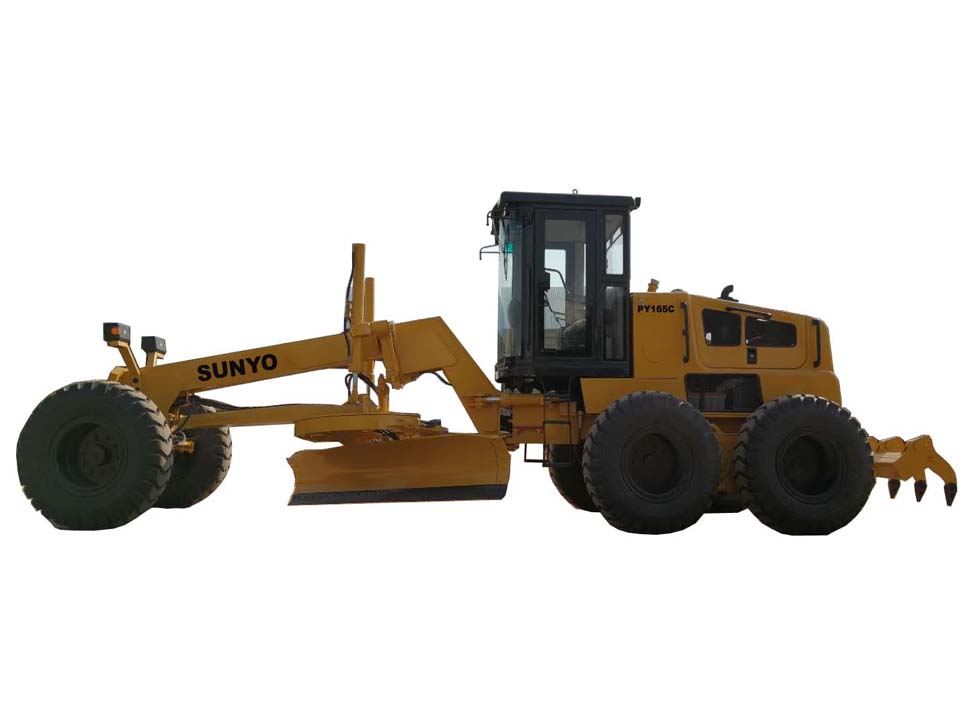

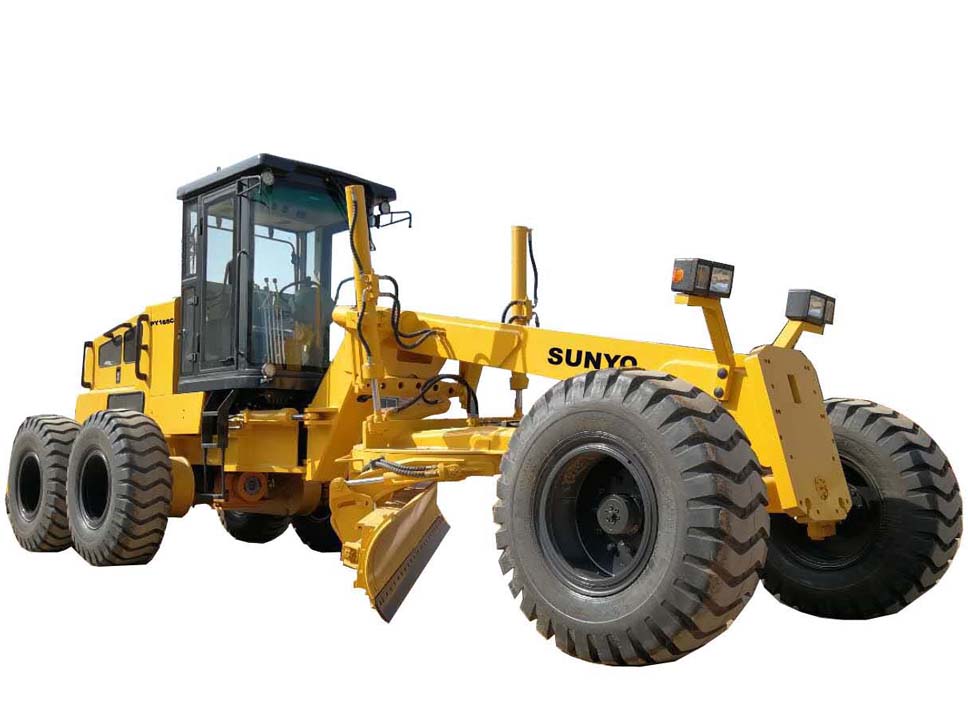

PY165C Self-propelled articulated motor grader is suitable for large-scale land leveling in foundation constructions. It can be used for ditching, grading, Slope scraping, bulldozing, ripping, virgin land, scarifying and snow-removing etc., which is modernized construction equipment of multi -functions and high-efficiency for high-class highway, railway, airport, harbors, dams, industrial ground and farmland.
Main Features:
1, CUMMINS diesel engine is turbocharged and water-cooled with reliable and powerful performance feature energy.
2, Torque converter and power-shift gearbox introduced from GERMANY ZF inc. are integrated together. Six forward gears and three backward gears meet various requirements during machine's working and transporting.
3, driving axle with integrated free-wheel anti-slip differential and strong roller chain Drive tandem case, Boxed oscillated steering front axle with leaned wheels.
4, popular working mechanism with pendulum-arm connecting rod structure, Standard equipped free-maintenance rolling-plate circle device. Double of the blade tip control can adjust the cutting angle depending on soil quality.
5.Flexible hydraulic control system with two sets of HUSCO five way control valve, Imported hydraulic equalizing valve for the blade lifting, Patent hydraulically operated pin drawing device is designed firstly in board.
6.Steering system with center articulate joint and tilting turning front wheels can get offset travel of the entire machine.
7.Service braking system of, caliper disc brakes on four rear wheels and mechanical internal expanding parking brake let.
8.Electro-hydraulically operated with entire instrumental monitoring system, free -maintenance OPTIMA Sweden batteries have.
9. It is optional for front bulldozing plate and rear ripper.

Motor Grader

PY220

With:
CUMMNINS 6CTA8.3 engine,
ZF Transmission,
HUSCO valve

Motor Grader

PY165

With:
CUMMNINS 6BTA5.9 engine,
ZF Transmission,
HUSCO valve
